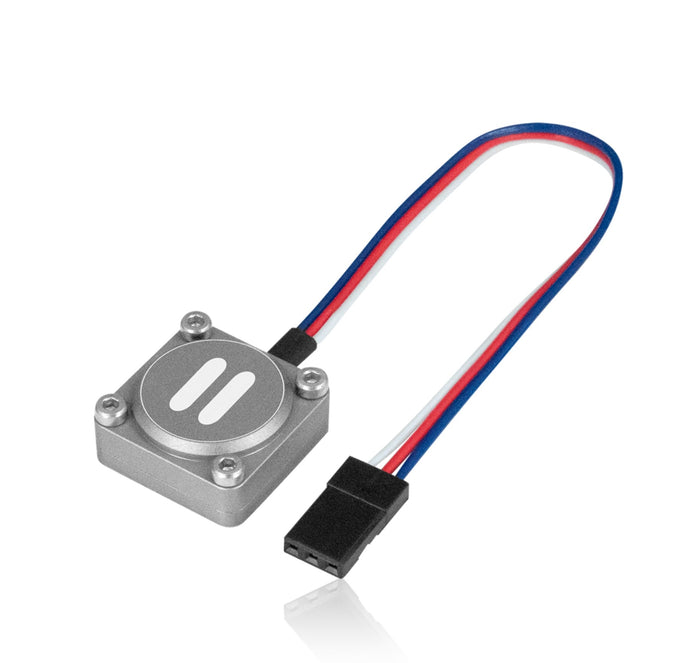

The iGyro SAT has been developed specifically to complement the new range of PowerBox PBR receivers with adding an iGyro function to any of them. Works also with the Powerbox Pioneer in combination with any other rc system.
Features
Extremely accurate triple-axis MEMS sensor
Special regulatory algorithm designed for fixed-wing model aircraft
Outputs the new FastTrack serial bus
Plug and play with all PowerBox receivers
Installed orientation can be selected
16-bit processor for fast, high-resolution signal processing
Robust aluminium case
Technical Data
Operating voltage
4.0V - 9.0V
Current drain Power-on state
20mA
Maximum load current
20A
Signal input
FastTrack Bus
Servo sockets
5
Servo signal resolution
0,5µs
Gyro regulation
Heading- and Normalmode
Gyro sensor type
MEMS
more
Product description
The iGyro SAT has been developed specifically to complement the new range of PowerBox PBR receivers by providing the modeller with a very simple means of adding an iGyro function to any PowerBox PBR receiver - Plug ‘n´Play. The iGyro SAT works as a sensor module, passing the data to the receiver via the FastTrack bus, which has been specially developed for the purpose.
When switched on, the receiver automatically detects a connected iGyro SAT, and responds by making all the set-up functions available at the CORE transmitter. The module is so small that it can be installed anywhere in the model; the connecting lead can be extended to any length if necessary.
The combination of module and PBR receiver produces a compact unit which offers exactly the same sensation of control and functionality as an iGyro 3XTRA or iGyro SRS!
