AGF RC A80BHMF CNC 40kg 0.085sec Brushless servo
AGF RC A80BHMF CNC 40kg 0.085sec Brushless servo
Couldn't load pickup availability

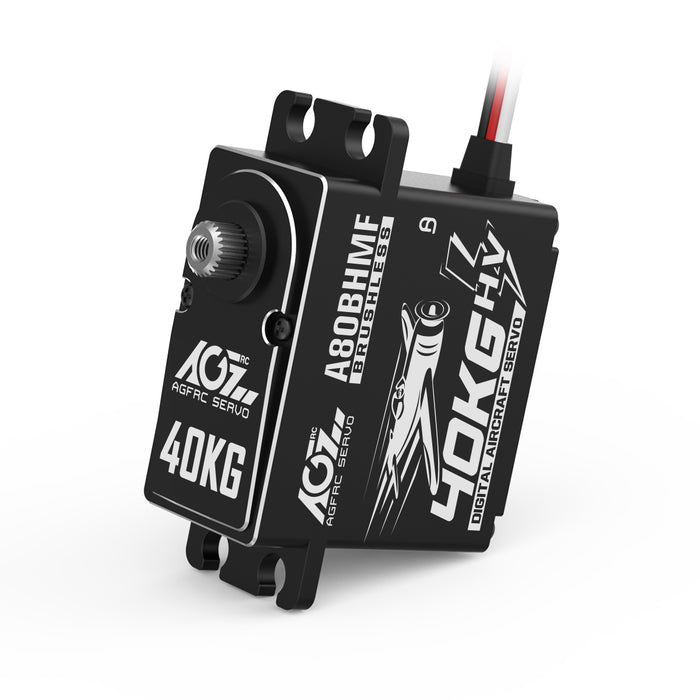

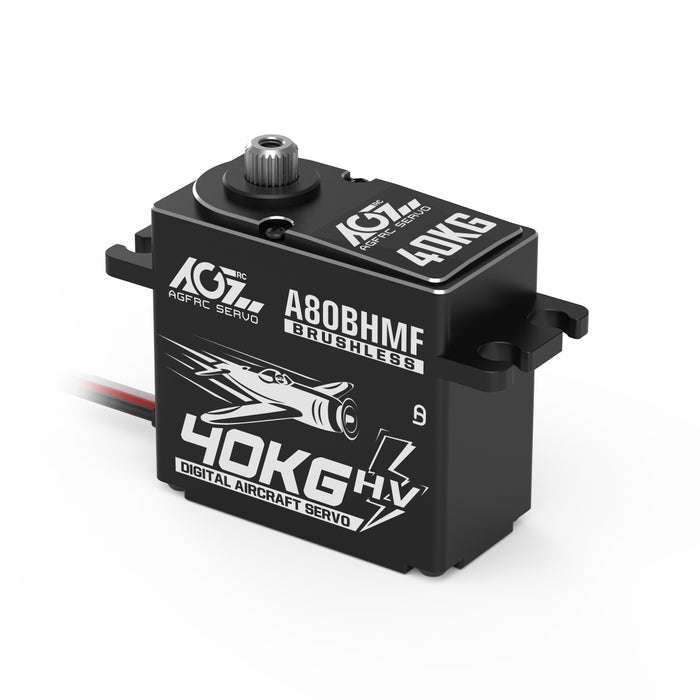

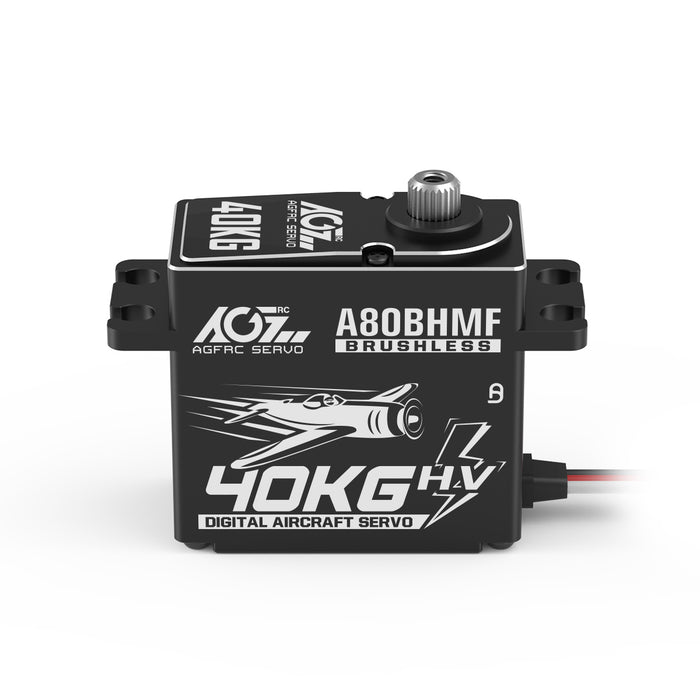

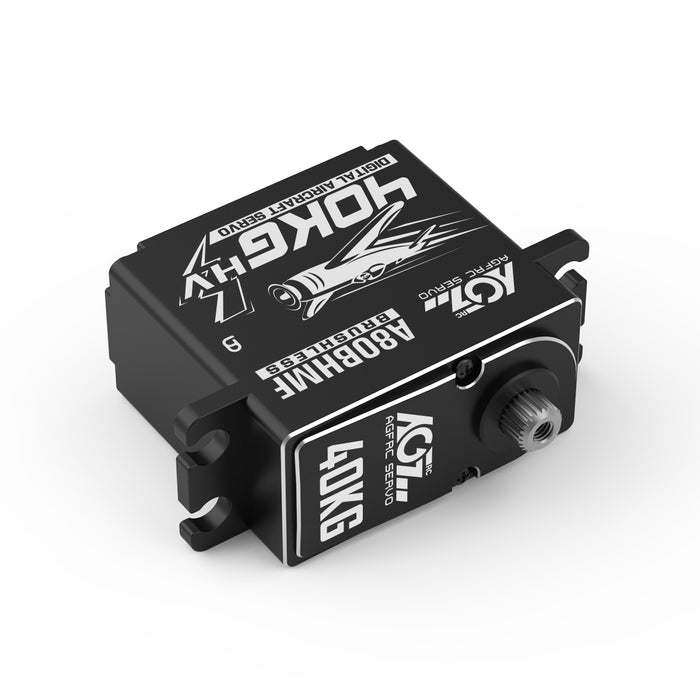

The AGFRC A80BHMF is a completely new 25T standard digital servo design, perfect for RC aircraft and plane applications.
This servo uses a titanium gear train, metal triple ball bearings, and a brushless motor for excellent durability against heavy use.
The full aluminum CNC solid housing structure enhances heat dissipation.
The programmable function allows for parameter adjustment, soft start, and optional inversion settings to meet higher flight requirements.
Feature
Full CNC Aluminum Housing
Quick Response Brushless Motor
Strong Metal Triple Ball Bearings
High Precision Steel Gear And Titanium Gear
Ideal For 30-200cc Airplanes, fixed-wing Aircrafts, etc.
Specification
| Item Name | A80BHMF |
| Stall Torque |
27 kg-cm (350 oz-in) @4.8V 31 kg-cm (430 oz-in) @6.0V 36 kg-cm (500 oz-in) @7.4V 40 kg-cm (556 oz-in) @8.4V |
| Operating Speed |
0.140 sec/ 60° @ 4.8V 0.120 sec/ 60° @ 6.0V 0.100 sec/ 60° @ 7.4V 0.085 sec/ 60° @ 8.4V |
| Angle Sensor | Potentiometer |
| Motor Type | Brushless |
| Programmable | Yes |
| Gear Material | Strength Steel |
| Horn Gear Spline | 25T-φ5.92mm |
| Wire | TYU 350mm / 22 AWG |
| Operating Voltage | 4.8V ~ 8.4V |
| Operating Temperature | -15C°~ +70C° |
| Size | 40 * 20 * 37.5 mm |
| Weight | 80g |
