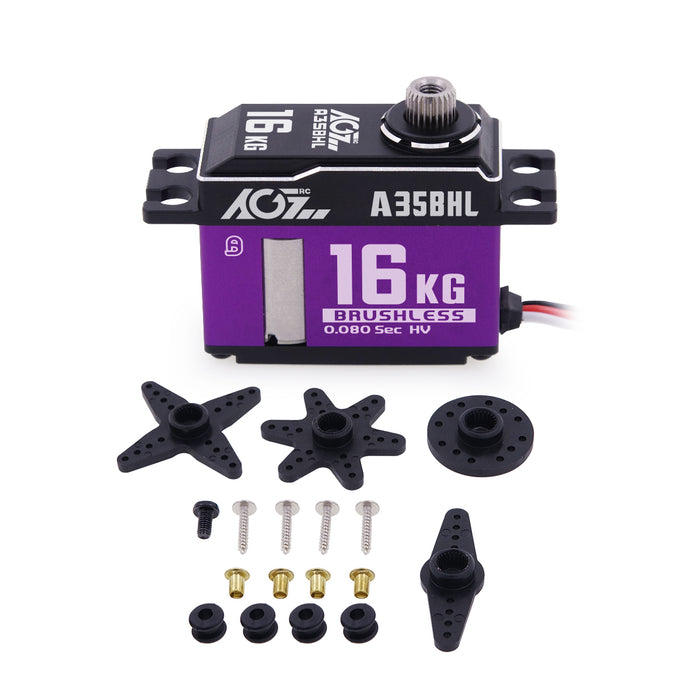

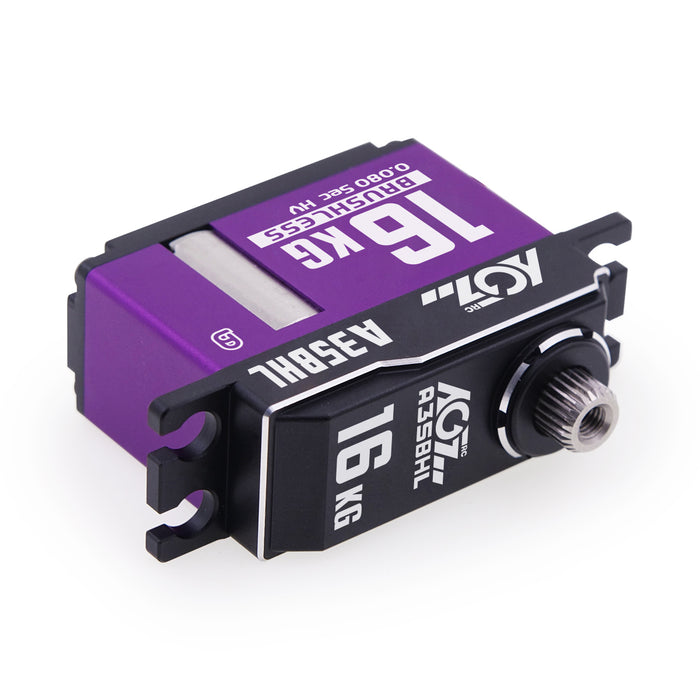

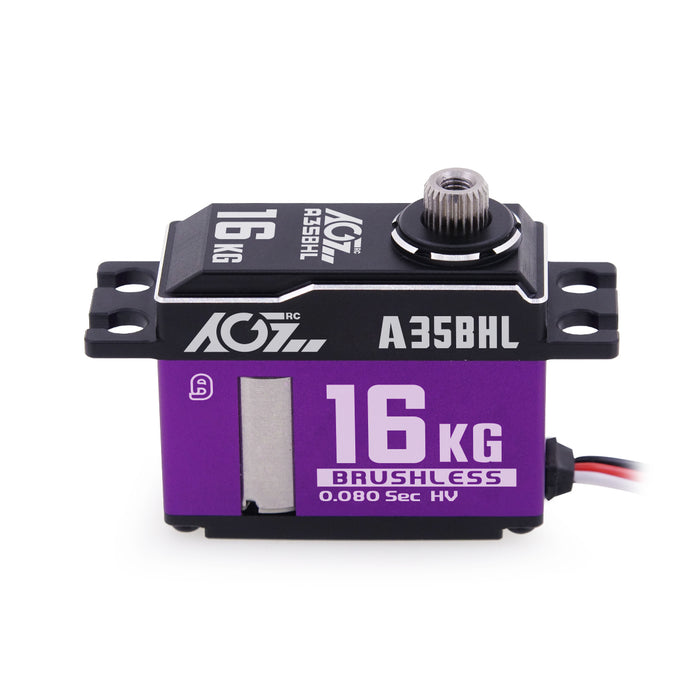

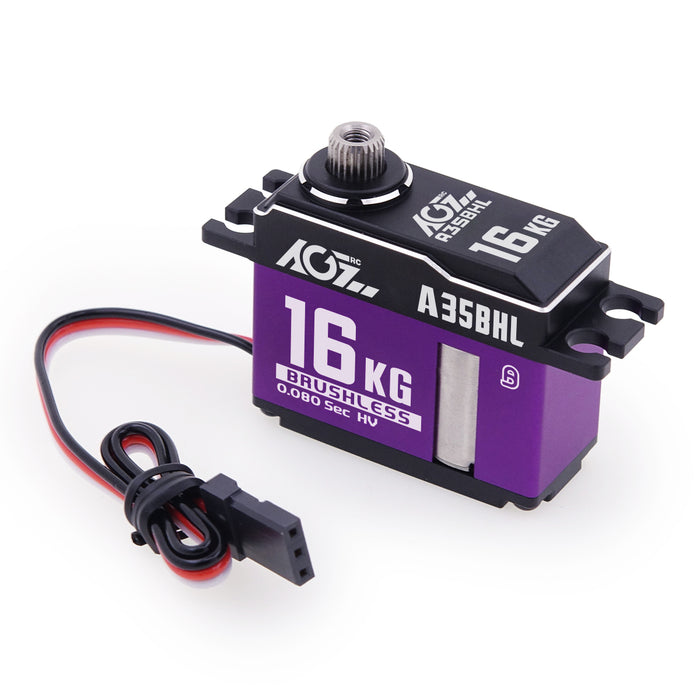

A35BHL Robust Steel Gear HV 16KG 0.08Sec Super Torque Programmable Brushless Medium Size Servo
A35BHL is a 25T HV 0.08sec digital medium-size servo. Featuring a more reliable brushless motor to provide more torque output, it can achieve 16kg of high torque at 8.4V. The chain of high precision titanium gear, ruggedized steel gear, and dual ball bearing provide a quality user experience. It is a programmable servo supporting parameter setting adjustment. If the parameters fit your needs, then get it for your cars or planes.
Perfect servo for Pilot RC 60 and 67 size planes.
Feature
Middle Compact Size Design
High Performance Digital Servo
Upgraded Robust Steel Gears
Longer Lifespan Brushless Motor
Fast Response
High-Voltage Capable
Smooth Dual Ball Bearing
Full Aluminum Case
Ideal for 1/12 Scale RC Cars, Large Cars/trucks, 380-500 Size Helicopter Cyclic, 3D Helicopters, Jet Airplanes, Gliders, Cars, Robots etc.

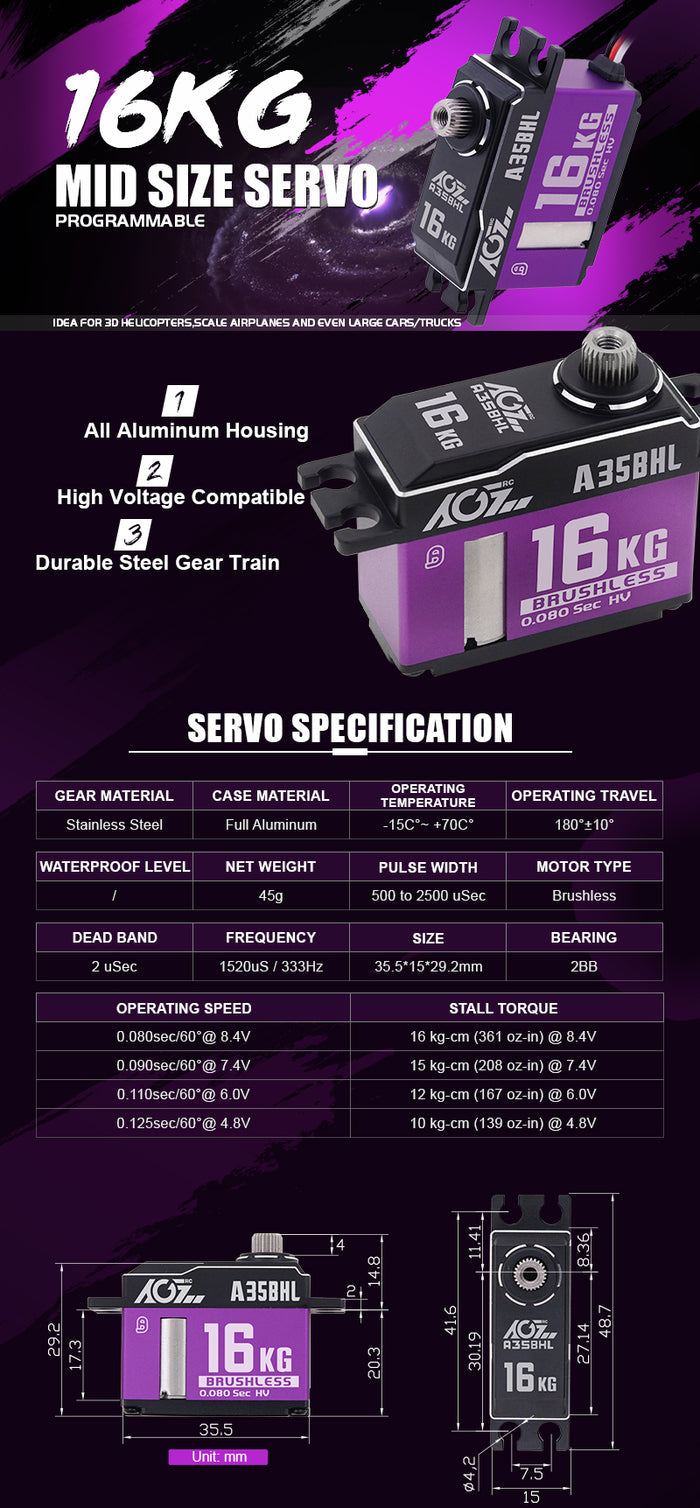

Specification
A35BHL
Operating Voltage: 4.8-8.4 V
Operating speed: 0.110sec/60° @ 6.0V
Operating speed: 0.090sec/60° @ 7.4V
Operating speed: 0.080sec/60° @ 8.4V
Stall Torque: 12 kg-cm (167 oz-in) @ 6.0V
Stall Torque: 15 kg-cm (208 oz-in) @ 7.4V
Stall Torque: 16 kg-cm (222 oz-in) @ 8.4V
Gear: Steel
Motor: Brushless
Size: 35.5*15*29.2mm (1.39 x 0.59 x 1.14 in)

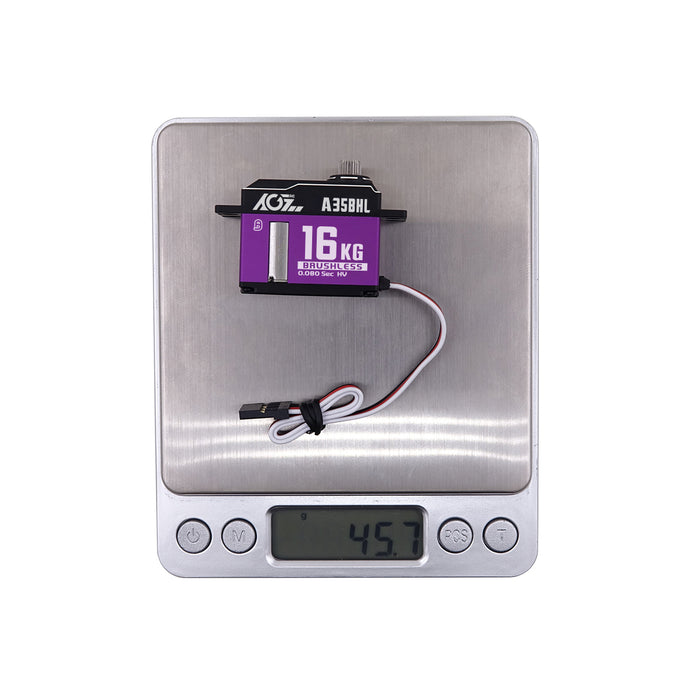

Weight: 45g
Connector Wire: TYU 180mm or 360mm /22AWG
