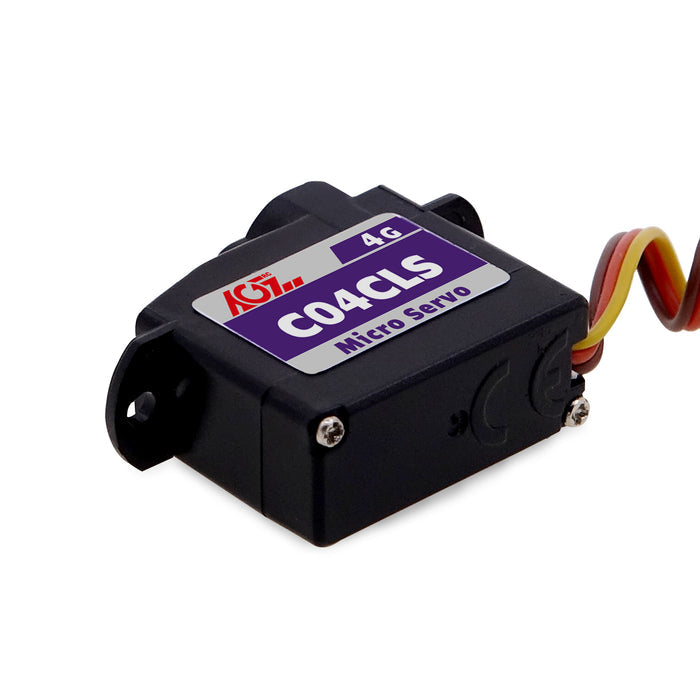

AGFrc C04CLS is a 4.3g ultra small body digital 20T micro servo. It is 6.0V high voltage capable, and it can reach 0.07s fast speed and 750 g-cm torque when the voltage is 5.0V. The coreless motor has been used to ensure the output, and plastic gears not only reduce the cost while maintaining quality, but also open up possibilities for more other applications.
A perfect replacement for the Hitec HS-40 servo
Feature
High Performance Digital Servo
High Precision Plastic Gears
High Quality Coreless Motor
Ideal for 1S Powered Applications, Indoor 3D Flight, Small Park Flyers, RC Plane
Specification
C04CLS
Operating Voltage: 3.6-6.0 V
Operating speed: 0.090sec/60° @ 4.2V
Operating speed: 0.070sec/60° @ 5.0V
Stall Torque: 600 g-cm ( 8.3 oz-in) @ 4.2V
Stall Torque: 750 g-cm (10.4 oz-in) @ 5.0V
Motor type: Coreless
Gear type: Plastic
Size: 20.2*8.5*19.3mm (0.79 x 0.33 x 0.76 in)

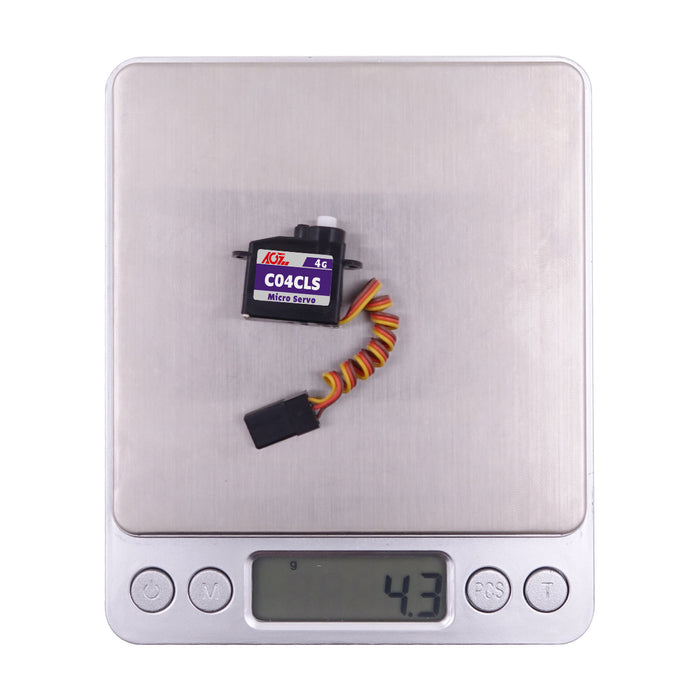

Weight: 4.3g
Connector Wire: JR 150 mm
