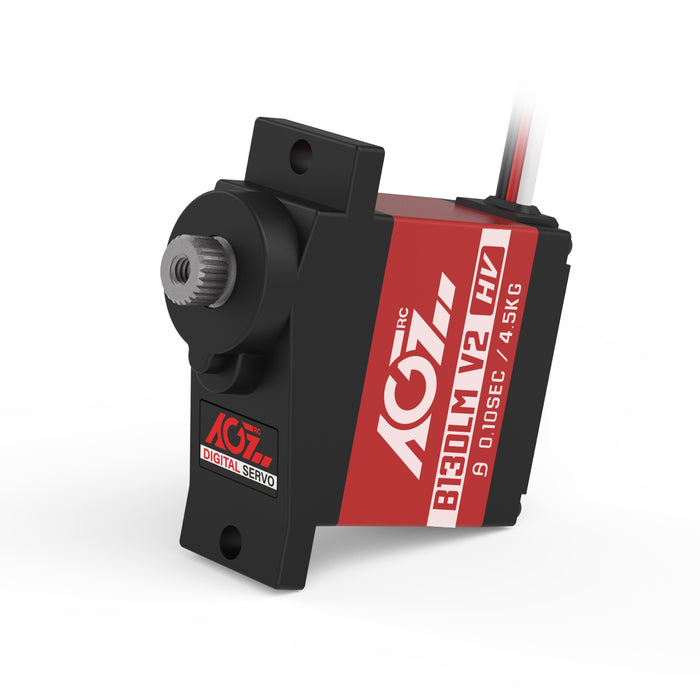

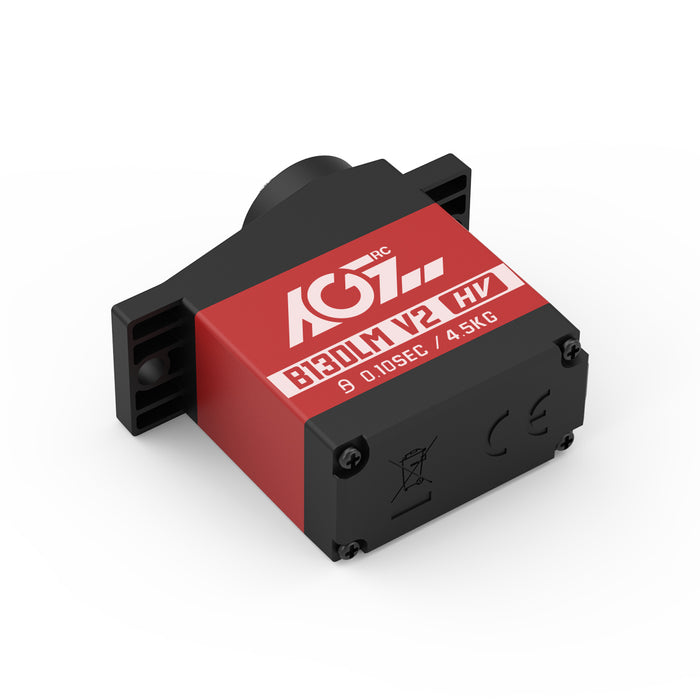

The AGFRC B13DLM V2 servo is now a 2S 8.4V High Voltage programmable digital micro servo, designed with a central CNC aluminum case for good heat dissipation and enhanced servo structure. Combined with double ball bearings, titanium gear, and a DC motor, it provides 4.5 kg-cm high torque at 8.4V. Its light weight and small size make it suitable for most mini R/C models. It supports programming of servo parameters via our USB Programmer to meet different needs.
Feature
Plastic and Aluminum Case
High Precision Metal Gears
High Quality Brushed Motor
HV 2S High Voltage Compatible Micro Servo
High Performance Programmable Digital servo
Ideal for 1/14, 1/18, 1/24 Scale Crawler, Airplane, 450 Size Helicopter etc.
Specification
B13DLM V2
Operating Voltage: 4.8-8.4 V
Operating speed: 0.15sec/60° @ 4.8V
Operating speed: 0.13sec/60° @ 6.0V
Operating speed: 0.11sec/60° @ 7.4V
Operating speed: 0.10sec/60° @ 8.4V
Stall Torque: 3.0 kg-cm (41.66 oz-in) @ 4.8V
Stall Torque: 3.8 kg-cm (52.77 oz-in) @ 6.0V
Stall Torque: 4.2 kg-cm (58 oz-in) @ 7.4V
Stall Torque: 4.5 kg-cm (63 oz-in) @ 8.4V
Motor type: DC
Gear type: Titanium
Size: 22.8*12*29.4mm (0.89 x 0.47 x 1.15 in)
Weight: 16g
Connector Wire: JR 180mm / 26AWG
