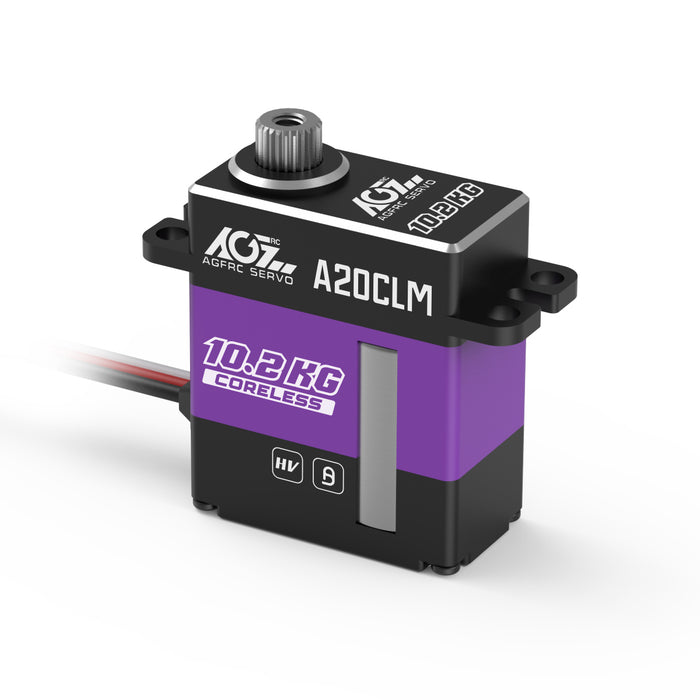

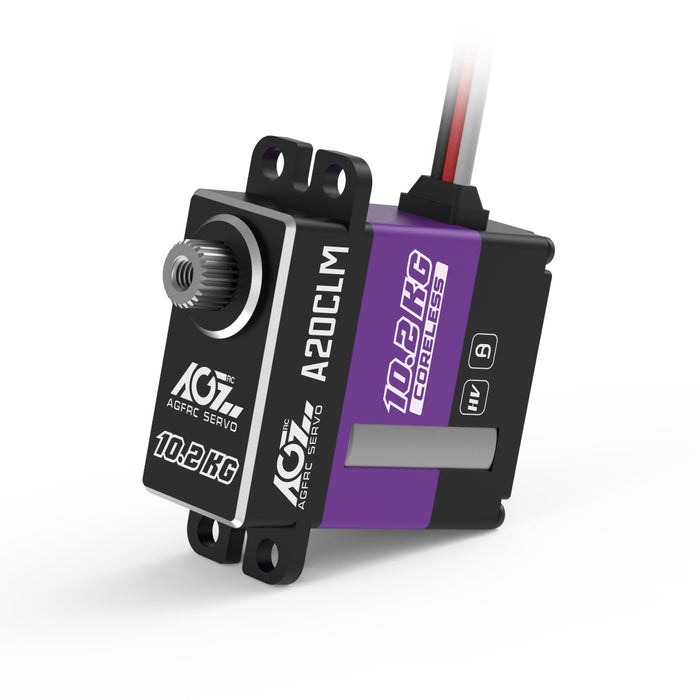

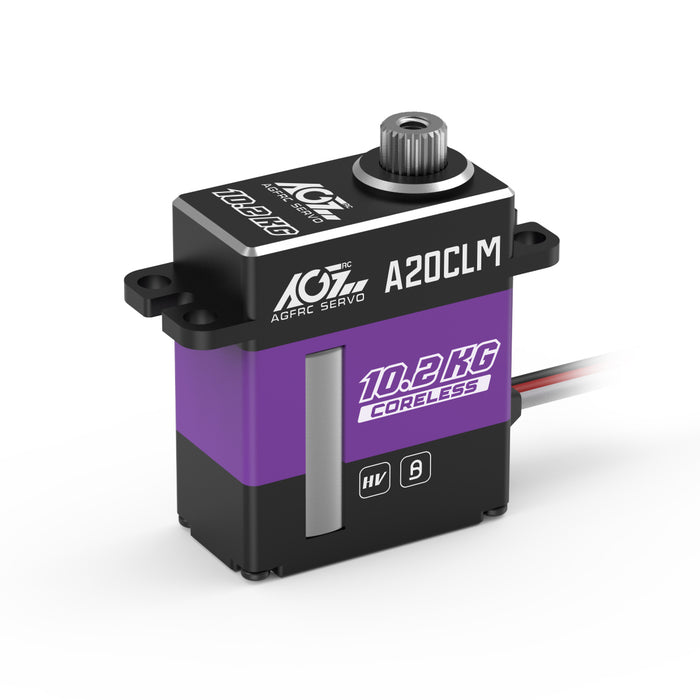

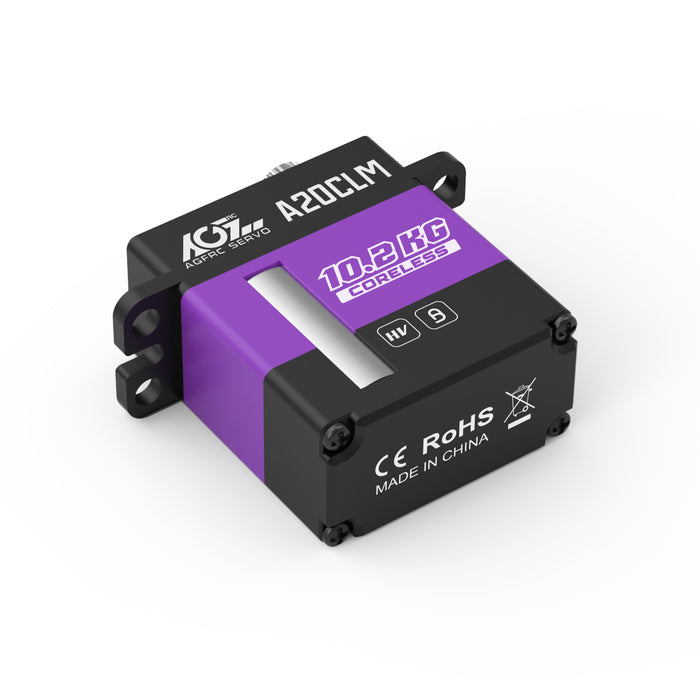

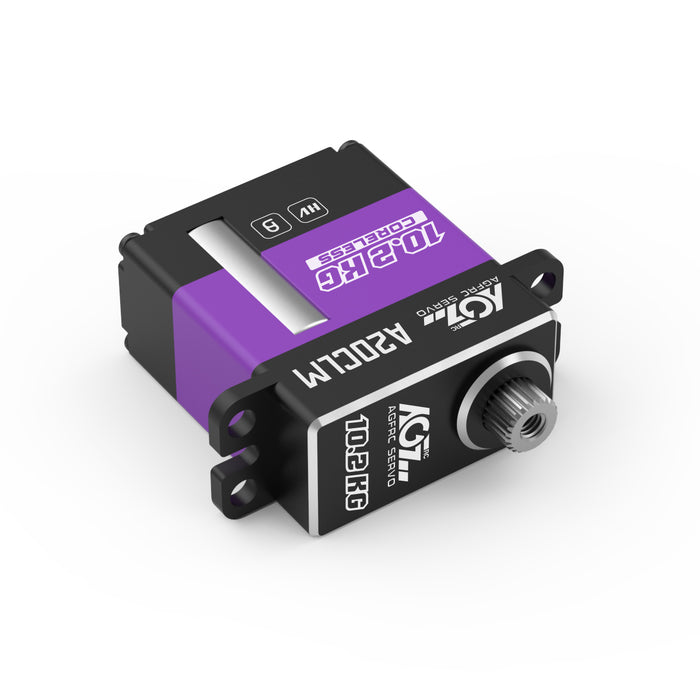

AGFRC A20CLM is a 20g lightweight programmable digital mini servo. It is a high voltage (2S LiPo capable) servo, which uses hardened metal gears, a double ball bearing structure, and a reliable aluminum alloy case designed to deliver the best performance at this size and price point. The 25T output spline offers maximum compatibility with a wide variety of horns. With the support of a Coreless motor, it has an excellent 10.2Kg.cm torque with a really good 0.093sec/60° rotation speed. Especially, it is only 12mm thick. This makes it particularly suitable for mounting in small fuselages and thin wings and tails, and other large fast models up to 10Kg in weight, including high speed gliders, helicopters, and sport planes. It is also great for robotics, drones, academic research, and other highly demanding applications.
Features
High Performance Digital Mini Servo
High Precision Metal Gears
High Quality Coreless Motor
Full CNC Aluminum Housing
12mm Ultra-thin Thickness
Ideal for 1/24 Scale RC Car, Gliders, Aircraft, 450 Class Helicopter Swashplate etc.
Specification
A20CLM
Operating Voltage: 4.8-8.4V
Operating speed: 0.155sec/ 60° @ 4.8V
Operating speed: 0.132sec/60° @ 6.0V
Operating speed: 0.105sec/60° @ 7.4V
Operating speed: 0.093sec/60° @ 8.4V
Stall Torque: 6.8 kg-cm (94 oz-in) @ 4.8V
Stall Torque: 7.5 kg-cm (104 oz-in) @ 6.0V
Stall Torque: 8.8 kg-cm (122 oz-in) @ 7.4V
Stall Torque: 10.2 kg-cm (141 oz-in) @ 8.4V
Gear: Strength Steel+Copper
Motor：Coreless
Size: 23*12*27.5mm (0.90 x 0.47 x 1.08 in)
Weight: 21g
Connector Wire: TYU 190mm / 26AWG
